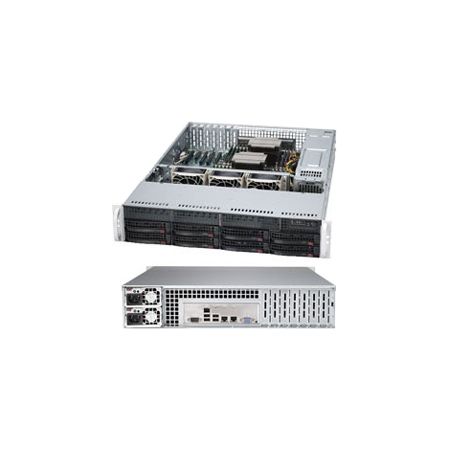

Supermicro SuperServer 6027R-72RFT Barebone System - 2U Rack-mountable - Intel C602 Chipset - Socket R LGA-2011 - 2 x Processor Support - Black Item # 934948
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
934948
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon® processor E5-2600 family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
Product Details
| Item # | 934948 |
| Manufacturer # | 10982332 |
| Number of SATA Interfaces | 10 |
| Ethernet Technology | Gigabit Ethernet; Fast Ethernet |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 740 W |
| height | 3.5 in |
| Certifications & Standards | ACPI 1.0 / 2.0 |
| Total Number of USB Ports | 7 |
| Graphics Controller Manufacturer | Matrox |
| Optical Drive Type | No |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 6027R-72RFT (Black); 1 x Super X9DRH-7TF Motherboard; 1 x 2U Chassis; 1 x BPN-SAS-825TQ-O-P Backplane; 2 x IPASS TO 4 SATA 46/33/23/13CM W/ SB, S 30AWG; 2 x 2U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM; 2 x 1U740W Platinum Redundant Single Output; 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing |
| depth | 25.5 in |
| Product Name | SuperServer 6027R-72RFT (Black) |
| QuickPath Interconnect Supported | Yes |
| Number of PCI Express x16 Slots | 1 |
| Rack Height | 2U |
| manufacturer | Supermicro Computer, Inc |
| Number of 3.5" Bays | 8 |
| VGA | Yes |
| weight | 52 lb |
| RAID Supported | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 512 GB |
| controller type | Serial ATA/600; Serial Attached SCSI (SAS) |
| Number of Total Memory Slots | 16 |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 7 |
| Storage Controller Name | LSISAS2208 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Power Supplies Installed | 2 |
| Number of Total Expansion Slots | 7 |
| Processor Socket | Socket R LGA-2011 |
| Chipset Model | C602 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200eW |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | 512 GB - registered - ECC ¦ 128 GB - unbuffered - ECC |
| color | black |
| Number of SAS Interfaces | 8 |
| warranty length | 3-year limited |
| model name | 6027R-72RFT |
| QuickPath Interconnect | 8 GT/s |
| Number of PCI Express x8 Slots | 6 |
| Show More ▾ |
